Understanding the Process of a Transmission Rebuild

Your vehicle’s transmission is one of the most complex and essential components under the hood. It’s responsible for transferring power from the engine to the wheels, ensuring your car moves efficiently at various speeds. When this system fails, it can feel like a disaster. You might be faced with a few options: replace the vehicle, buy a new transmission, or opt for a transmission rebuild.

For many drivers, a rebuild is the most cost-effective solution that doesn't compromise on quality—provided it's done correctly. However, it is a common misconception that all transmission repairs are created equal. The process varies significantly depending on whether you have an automatic, manual, or continuously variable transmission (CVT), and whether you choose a professional shop or attempt a risky DIY fix.

This guide breaks down exactly what happens during a professional transmission rebuild, helping you understand where your money goes and why expertise matters.

What is a Transmission Rebuild?

A transmission rebuild is not a simple repair. It involves removing the transmission from the vehicle, disassembling it piece by piece, cleaning every component, and replacing parts that are worn or damaged. The goal is to restore the transmission to factory specifications—or better—without the expense of purchasing a brand-new unit.

Unlike a simple fluid change or a minor adjustment, a rebuild is a major overhaul. It requires specialized tools, extensive knowledge of hydraulics and mechanics, and a keen eye for detail. This is why choosing a shop with ASE-certified technicians is crucial for long-term reliability.

Step 1: Diagnosis and Inspection

Before a single bolt is turned, a professional technician must confirm that the transmission is actually the source of the problem. Many symptoms that feel like transmission failure—such as slipping gears or rough shifting—can sometimes be caused by electrical issues, sensor failures, or even low fluid levels.

Technicians start with a comprehensive diagnostic scan to read error codes from the vehicle’s computer. This is followed by a road test (if the vehicle is drivable) to replicate the issue. Once the problem is isolated to the transmission’s internal components, the decision to rebuild is made.

Step 2: Removal and Disassembly

This is the labor-intensive start of the physical work. The transmission is disconnected from the engine, the driveshaft, and the vehicle's cooling lines. Once removed from the vehicle, it is taken to a specialized rebuild bench.

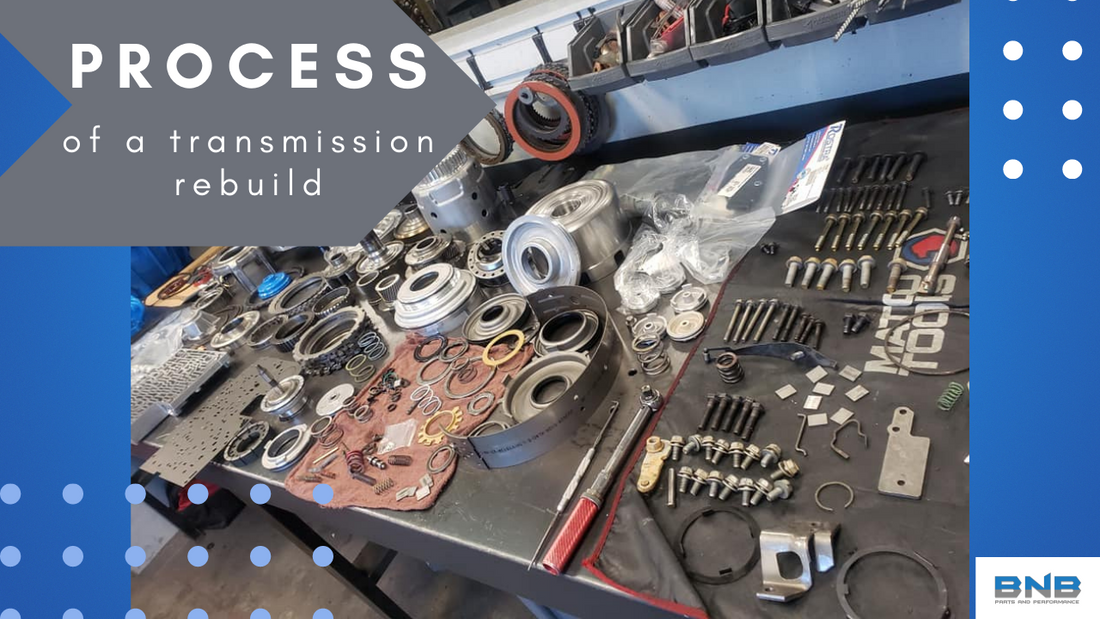

The technician then carefully disassembles the unit. In an automatic transmission, this reveals a complex maze of gears, clutches, bands, and seals. In a manual transmission, you’ll see gears, bearings, and synchronizers. Every part is laid out and cataloged.

Step 3: The Chemical Wash

You cannot rebuild a dirty transmission. Over time, metal shavings, clutch material, and sludge build up inside the casing. If these contaminants aren't removed, they will destroy the new parts immediately after the rebuild.

All "hard parts" (like the case, gears, and shafts) are put through an industrial parts washer. This typically involves high-pressure hot water and specialized cleaning solvents to strip away years of grime. This step is critical because it reveals cracks or wear on the metal parts that might otherwise be hidden by oil and sludge.

Step 4: Inspecting the "Hard Parts"

Once clean, the technician inspects the durable components known as "hard parts." These include:

• The Case: Checked for cracks or warping.
• Gears and Shafts: Inspected for chipped teeth or excessive wear.
• Pumps: The hydraulic pump is vital; if it's worn, fluid pressure will be too low for the transmission to function.
• Torque Converter: In almost all rebuilds, the torque converter is replaced rather than repaired, as it is a sealed unit that traps debris.

If hard parts are damaged, they are not part of a standard "soft part" kit and will need to be replaced. A reputable shop will communicate this with you immediately if unexpected damage is found.

Step 5: Replacing the "Soft Parts"

This is the core of the rebuild. "Soft parts" are the components that wear out through normal friction and heat. A master rebuild kit typically includes:

• Gaskets and Seals: Rubber and cork components that prevent fluid leaks.
• O-Rings: Vital for maintaining internal hydraulic pressure.
• Clutches and Bands: Friction materials that engage and disengage gears.
• Filters: To keep the fluid clean moving forward.

Replacing these items is non-negotiable. Reusing old seals or clutches invites failure within a few hundred miles.

Step 6: Updates and Improvements

This step is where a high-quality rebuild shines compared to a factory replacement. Manufacturers often release technical service bulletins (TSBs) or update kits to fix known design flaws in specific transmission models.

An experienced technician will install these updates during the rebuild. This means your rebuilt transmission could actually be more durable than the one that came in your car when it was new, as it has been "cured" of its original engineering defects.

Step 7: Reassembly and Reinstallation

The technician reassembles the transmission, checking clearances and tolerances at every stage. This requires precision; often, measurements are taken in thousandths of an inch. Once the unit is back together, it is reinstalled in the vehicle. The cooling lines are flushed to ensure no old debris enters the fresh unit, and the system is filled with the manufacturer-specified transmission fluid.

Step 8: The Final Test

The job isn't done until the vehicle runs perfectly. The technician performs a relearn procedure (resetting the transmission control module so it recognizes the new components) and takes the vehicle for an extensive road test. They check for smooth shifting, proper engagement, and ensure there are no leaks.

Why Expertise Matters: Dealer vs. Independent vs. DIY

You have options for where to get this work done, but they come with different risks.

• DIY Kits: While you can buy rebuild kits online, modern transmissions are incredibly complex. Without specialized tools and a sterile environment, a DIY rebuild often leads to failure and a towed vehicle.
• General Repair Shops: A general mechanic might swap a transmission, but they rarely have the specialized knowledge to rebuild one internally.
• Specialized Transmission Shops: This is usually your best bet. Shops that focus exclusively on drivetrains have the specific tooling and up-to-date training to handle everything from heavy-duty trucks to CVTs. They also typically offer better warranties, such as the ATRA 3-year/100,000-mile warranty, which provides genuine peace of mind.

Investing in Your Vehicle's Future

A transmission rebuild is a significant investment, but it extends the life of your vehicle significantly. By understanding the process—from the initial diagnosis to the final road test—you can appreciate the precision required to get you back on the road.

Don't settle for a quick fix or a used unit with an unknown history. Trust your vehicle to skilled technicians who bring years of experience to every repair. Whether you need a standard rebuild or a performance upgrade, ensuring the job is done right the first time is the key to driving with confidence.
