Why Does a Transmission Rebuild Take So Long?

When your vehicle is in the shop for a transmission rebuild, one of the first questions you may have is, “Why does it take so long?” It’s understandable. You depend on your vehicle, and being without it can be inconvenient.

The answer is that a quality transmission rebuild is much more involved than simply removing an old part and installing a new one. A transmission contains hundreds of components that must work together within precise tolerances. Rebuilding one correctly requires diagnostics, removal, complete disassembly, cleaning, inspection, parts replacement, careful reassembly, installation, programming when required, and final testing.

At Gears Transmission, we believe taking the time to do each of those steps correctly is far more important than rushing a vehicle through the shop.

Step 1: It Starts With Proper Diagnostics

Before removing a transmission, we first need to determine what is actually causing the problem.

Slipping, harsh shifting, delayed engagement, shuddering, or other symptoms don't automatically mean the entire transmission needs to be rebuilt. The problem could involve the transmission itself, electronics, a valve body, torque converter, or even another system affecting transmission operation.

Proper diagnostics help us avoid unnecessary repairs and give our technicians valuable information about what may have caused the failure in the first place.

Step 2: The Transmission Has to Be Removed

Once a rebuild is determined to be necessary, the transmission must be removed from the vehicle.

This isn't always a quick process. Modern vehicles can have tight packaging, exhaust components, crossmembers, wiring, coolers, transfer cases, driveshafts, and other components that must be disconnected or removed to safely access the transmission.

The amount of labor required varies considerably from one vehicle to another.

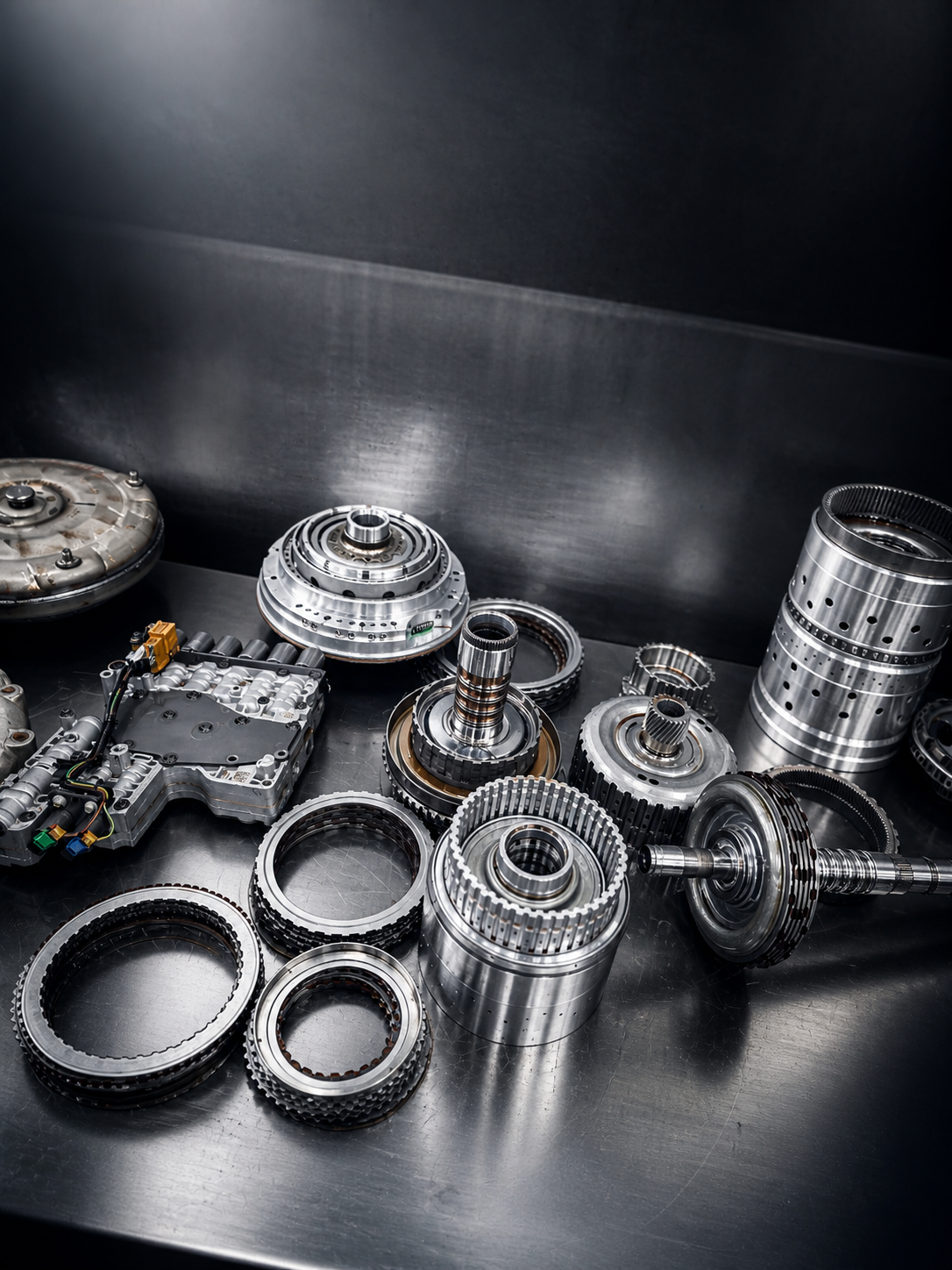

Step 3: Complete Teardown and Inspection

Once removed, the transmission is taken to our rebuilding department and completely disassembled.

This is where a rebuild is very different from simply replacing a transmission.

Internal components are inspected for wear, heat damage, contamination, cracks, scoring, and other signs of failure. Our builders aren't only looking for the damaged component—they're looking for evidence that helps explain why it failed.

Simply replacing the obvious failed part without addressing the underlying cause could lead to another failure later.

Step 4: Cleaning Takes Time

A failed transmission can circulate clutch material, metal particles, and other debris throughout the unit.

Transmission cases and reusable internal components must be thoroughly cleaned before reassembly. Components that appear reusable still need to be inspected and measured to make sure they meet the requirements for the rebuild.

A clean work environment is especially important because even small amounts of contamination can affect transmission operation.

Step 5: Parts Have to Be Identified and Sourced

Not every transmission requires exactly the same parts.

After teardown, we know much more about what the transmission actually needs. In addition to normal rebuild components such as seals, gaskets, clutches, and other wear items, a unit may require additional hard parts, electronic components, bushings, drums, pumps, shafts, valve body components, or a torque converter.

If a specific component isn't immediately available, sourcing the correct part can add time to the repair.

We would rather wait for the right component than compromise the rebuild simply to finish it faster.

Step 6: Reassembly Is Precision Work

This is one of the most important parts of the entire process.

A transmission isn't something that should be assembled as quickly as possible. Clearances, tolerances, clutch packs, seals, bushings, valves, fasteners, and numerous other components must be installed and checked correctly.

Our transmissions are rebuilt in-house, giving us greater control over the process rather than simply ordering a replacement unit and installing it.

That takes more time—but it also means we know what went into the transmission we're putting back into your vehicle.

Step 7: Installation Isn't the Finish Line

Once the transmission is rebuilt, it still has to be installed back into the vehicle.

Fluids must be filled correctly, connections checked, and related components reinstalled. Depending on the vehicle, additional procedures such as programming, resetting adaptations, or relearn procedures may also be necessary.

And we're still not finished.

Step 8: Quality Control and Road Testing

Before returning your vehicle, we want to know the repair is operating as intended.

Our final quality-control process can include checking fluid levels, inspecting for leaks, scanning the vehicle, monitoring transmission operation, and road testing.

If something doesn't look or feel right during final testing, the vehicle doesn't simply get handed back to the customer because a promised completion time has arrived. It gets addressed.

So, How Long Does a Transmission Rebuild Take?

There isn't one accurate answer for every vehicle.

The timeline can depend on the type of transmission, vehicle design, extent of internal damage, parts availability, additional problems discovered during teardown, programming requirements, and current shop workload.

That's why an estimated completion date is just that—an estimate.

We understand how important it is to get your vehicle back. But when you're investing in a major repair, getting it back right is ultimately more important than getting it back a little sooner.

A Rebuild Is a Process, Not Just a Repair

When customers see their vehicle sitting at a transmission shop, it can sometimes appear that nothing is happening. Behind the scenes, however, your transmission may be moving through diagnostics, removal, teardown, cleaning, inspection, parts sourcing, rebuilding, installation, programming, and quality control.

Each stage matters.

At Gears Transmission, we perform our transmission rebuilds in-house and focus on doing the job correctly from diagnosis through final inspection. Our goal isn't simply to get a transmission out the door—it's to provide a repair we can confidently stand behind.

Need transmission diagnostics or think your vehicle may need a rebuild? Contact Gears Transmission to schedule an evaluation and let our team help determine the right next step for your vehicle.
